TUNLAND 4X4 PICK-UP DOUBLE CABIN PICK-UP
The Tunland is Foton’s signature next-generation pickup truck. The vehicle features the latest technology and is extremely reliable. Thanks to its special design, the Tunland offers you an impressive visibility and an extraordinary driving experience. Displaying perfection in every detail, the Tunland truly is in a class of its own. For both work and leisure, the Tunland is the perfect choice for the discerning driver.
2. 8 L Cummins engine,
120HP,
ABS + EBD,
Dual
Ai r bag Bucket
liner
Cummins ISF 2.8 Diesel Engine
The Tunland’s powerful 120KW Cummins ISF 2.8 diesel engine is the strongest in the class of engines with displacements below 3.0L. It also has a maximum torque output of 360 N.m, which is 22.5%-60% higher compared to similar products. As a result, the Tunland can easily handle harsh road conditions.
The Tunland features the latest turbocharger intake system. The electronically controlled, high-pressure common rail fuel injection system by BOSCH guarantees the best performance.
The powertrain is based on a modular design concept. It has 40% less components than other similar products. The engine is also 10% lighter than the ones used in similar pickup trucks. Thanks to its special design, it operates at extremely low noise and vibration levels. Maintenance of the engine is easy and cost efficient.
4G69 Gasoline Engine
This model features a 12-hole particle fuel injector and EFI technology.
The exhaust system features a dual tubular exhaust manifold with a catalyst converter.
The Intake system is based on the MIVEC (Mitsubishi Innovative Valve Timing Electronic Control) system with 4 cylinders and 16 valves.
COMFORT

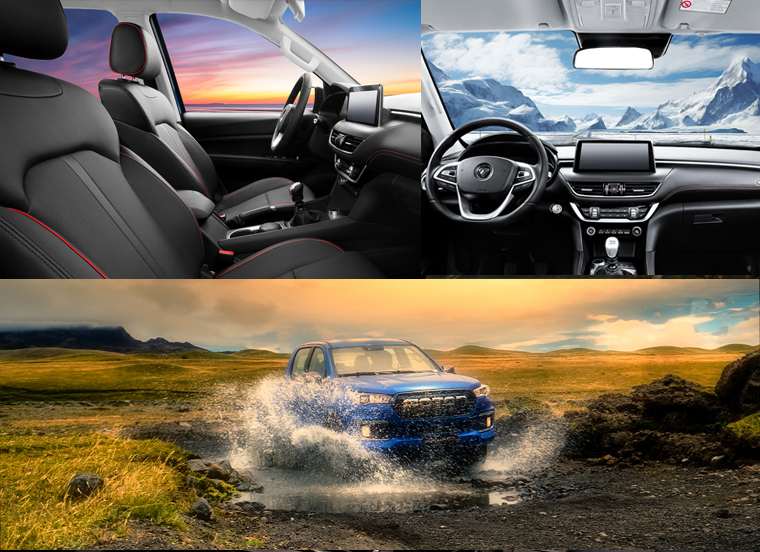

Interior
The interior of the Tunland shows great attention to detail.
Three-dimensional, high-performance LED lights allow for great visual comfort.
A handy 5-speed gear shift lever makes shifting gears easy and fun.
Full electronic controls are in place, including a unique locking system.
Convenience
The Tunland is extremely spacious: the width of the interior is 1880mm, giving you the greatest sense of comfort when driving. The large windshield provides you with an amazing field of vision. The rear legroom can easily provide rear-seated passengers with 800mm of leg space.
Ergonomic design: the smart layout and superior air conditioning vents perfectly match the overall design, providing you with a pleasant temperature and atmosphere while being seated in the pickup. The interior of the Tunland truly helps you to relax and enjoy the ride.
Adjustable seats: the driver’s seat can be adjusted in six ways, enabling you to find the perfect, most comfortable position while driving. Storage space: The extremely large storage space makes traveling easy and convenient.
Great equipment
Adjustable seats: the driver’s seat can be adjusted in six ways, enabling you to find the perfect, most comfortable position while driving.
Multifunctional steering wheel: The steering wheel is equipped with volume control, Bluetooth, cruise control and other common functions, making your driving experience convenient and safe.
HiFi entertainment system: The Tunland features an integrated USB and AUX digital interface, hi-fi equipment as well as a voice command system, giving you the highest degree of comfort.
Adaptable temperature
Thanks to the BOSCH high-pressure common rail system and the cold start control of the electronically controlled Cummins engine, starting the engine at -40°C is not a problem.
ABS+EBD
Equipped with BOSCH’s four-channel ABS + EBD, the Tunland enables you to maintain steering wheel control and driving stability during heavy braking.
Child safety seat
The child seat fixture was specifically designed for children traveling in a safety seat.
Environmentally friendly
The application of the latest technology makes the engine extremely eco-friendly. The engine features ECU (Electronic Control Unit) control technology and uses SCR (Selective Catalytic Reduction), EGR (Exhaust Gas Recirculation) technologies. By employing precise measurement and control mechanisms of the intake of air and the combustion process, nitrogen oxides (NOX) and particulate matter (PM) pollution is substantially reduced.
4WD
With Part-time 4WD system, a part-time 2-speed push button allows you to choose the suitable mode according to different road conditions.
2H mode: normal on-road use4H mode: wet or slick off-road use
4L mode: extreme off-road use
Towing
The Tunland is powerful enough to tow a 2.5t caravan, enabling you to enjoy your life anytime and anywhere.
Load capacity
The Tunland’s 4.35㎡ truck bed is spacious and its cargo capacity is up to 1.5t.
Wading depth
The Maximum wading depth of the Tunland is 420mm.
Gradeability
The maximum trafficable transverse gradient is 40 % and the gradeability is 60%.
Adaptable temperature
Thanks to the BOSCH high-pressure common rail system and the cold start control of the electronically controlled Cummins engine, starting the engine at -40°C is not a problem.
TUNLAND 4x4 DOUBLE CABIN PICK-UP A/T
| Product Model | BJ2037Y3MDV-A2 | |
|---|---|---|
| Driving Type | 4 x 4 | |
| Body | Double cabin | |
| Whole vehicle main dmensions | Overall dimensions (LxWx H)mm | 5995X1880X1860 |
| Inner dimensions of cargo body (LxWx H)mm | 1520x1580x440 | |
| Min. ground clearance (full-load, mm) | 210 | |
| wheel base (mm) | 3105 | |
| Weight Data | Curb weight (kg) | 1950 |
| Rated payload (kg) | 1025 | |
| Person in cab | 5 | |
| Gross vehicle weight (kg) | 2975 | |
| Engine | Model | ISF 2.8 |
| Max Power(Kw) | 130(3600rpm) | |
| Max torque(N.m) | 365(1800-3000rpm) | |
| Power System | Protective plate under the engine | |
| Protective under the oill tank | ||
| Vehicle axle | Rear axle | With LSD |
| 16 inche aluminum alloy | ||
| 265/70R16 | ||
| Full size aluminum wheel spare tyre/1 pcs | ||
| Leather (with airbag) | ||
| Muti-function steering wheel | With airbag + with all the multi-function buttons | ||
| Braking safety | ABS + EBD | |
| Front disc, Rear disc | ||
| Exterior trims | Front bumper | New "Wing" front grille model |
| Rear bumper | ||
| Wheel arch | ||
| High position brake lamp | ||
| Side pedal | ||
| Front fog light | ||
| Day running light | ||
| Day running light | ||
| Electric adjustment with defrost function, manual folding | ||
| Chromed rear-view mirror | ||
| Cargo body inside | Spray type | |
| Interior trims | Seat | Front-row seat (leather, manual, 4-way headrest with abdominal support) |
| Second-row seat (Leather + fixed backrest + upturning cushion) | ||
| with pre-tensioner and force limiter (3-oint type) | ||
| Safety belt of the second row (Common safety belt (3-point type, middle seat with 2-point type)) | ||
| Sun visor | Driver side sunvisor with bag. Chemical fiber | |
| Rear winscreen | With defrost function | |
| Opening and closing parts | Vehicle doors and windows | Electric window/One-key control down. Electric front door and rear door. |
| One-key rising/with anti-pinch function | Driver's side | |
| Remote control car locking/Remote control window closing | ||
| One flat-panel keys+one folding key | With remote control and without anti-theft | |
| Electrical System | Electric clock | Clock |
| Air bag on the driver's seat | ||
| Air bag on the copilot's seat | ||
| Cigar lighter | 1 | |
| AM/FM radio + MP5 (AUX + USB) + Reverse screen player + blue tooth port | ||
| 4 | ||
| Reverse radar | Buzzer | |
| Air-condition | AC assembly. Automatic Cooling and heating mixing type electric air conditioner. | |
| Air heater | ||
TUNLAND 4x4 DOUBLE CABIN PICK-UP M/T
| Product Model | BJ2037Y3MDV-S | |
|---|---|---|
| Driving Type | 4 x 4 | |
| Body | Double cabin | |
| Whole vehicle main dmensions | Overall dimensions (LxWx H)mm | 5310*1880*1860 |
| Inner dimensions of cargo body (LxWx H)mm | 1520x1580x440 | |
| Min. ground clearance (full-load, mm) | 200 | |
| wheel base (mm) | 3105 | |
| Weight Data | Curb weight (kg) | 1950 |
| Rated payload (kg) | 1025 | |
| Person in cab | 5 | |
| Gross vehicle weight (kg) | 2975 | |
| Engine | Model | ISF 2.8 |
| Max Power(Kw) | 120(3600rpm) | |
| Max torque(N.m) | 365(1800-3000rpm) | |
| Power System | Protective plate under the engine | |
| Protective under the oill tank | ||
| Vehicle axle | Rear axle | DANA AXLE series | Without LSD |
| 16 inche aluminum alloy | ||
| 265/70R16 | ||
| Full size aluminum wheel spare tyre/1 pcs | ||
| Leather (with airbag) | ||
| Muti-function steering wheel | With airbag + with all the multi-function buttons | ||
| Braking safety | ABS + EBD | |
| Front disc, Rear disc | ||
| Exterior trims | Front bumper | New "Wing" front grille model |
| Rear bumper | ||
| Wheel arch | ||
| High position brake lamp | ||
| Side pedal | ||
| Front fog light | ||
| Day running light | ||
| Day running light | ||
| Electric adjustment with defrost function, manual folding | ||
| Chromed rear-view mirror | ||
| Cargo body inside | Spray type | |
| Interior trims | Seat | Front-row seat (leather, manual, 4-way headrest with abdominal support) |
| Second-row seat (Leather + fixed backrest + upturning cushion) | ||
| with pre-tensioner and force limiter (3-oint type) | ||
| Safety belt of the second row (Common safety belt (3-point type, middle seat with 2-point type)) | ||
| Sun visor | Driver side sunvisor with bag. Chemical fiber | |
| Rear winscreen | With defrost function | |
| Opening and closing parts | Vehicle doors and windows | Electric window/One-key control down. Electric front door and rear door. |
| One-key rising/with anti-pinch function | Driver's side | |
| Remote control car locking/Remote control window closing | ||
| One flat-panel keys+one folding key | With remote control and without anti-theft | |
| Electrical System | Electric clock | Clock |
| Air bag on the driver's seat | ||
| Air bag on the copilot's seat | ||
| Cigar lighter | 1 | |
| AM/FM radio + MP5 (AUX + USB) + Reverse screen player + blue tooth port | ||
| 4 | ||
| Reverse radar | Buzzer | |
| Air-condition | AC assembly. Automatic Cooling and heating mixing type electric air conditioner. | |
| Air heater | ||
